Saber CP-series

The Saber Classic Promote-series is the flexible option for reliable MEMS-based solutions. With IMU, VRU,AHRS,and GNSS, the CP-series offers the systems integrator three different integration levels. The module is based on an industry-proven, cost-effective MEMS-based orientation sensor, and has an integrated, full-featured sensor fusion algorithm with easy to use SDK.



I Would Like to Know More

Saber Classic Promote Series Module

Saber CP-series (CP4/CP6/CP7) from Atom Robotics are miniature industrial Inertial Navigation System modules based on advanced MEMS sensor for high output data rate and high precision digital position tracking with features such as: IMU, VRU, AHRS,GNSS.

The Applicitiaon

Saber CP series is optimazed base on Saber C series for harsh industrial scenarios. Miniature, high precision and high reliability are most advantage. In any domain: land, air and subsea, Saber CP series can provide high performance and high stability data output.

Request Pricing

We recommend to use one of our Development Kit first. Development Kit is available on the line .

Visit the online shop

mti 10

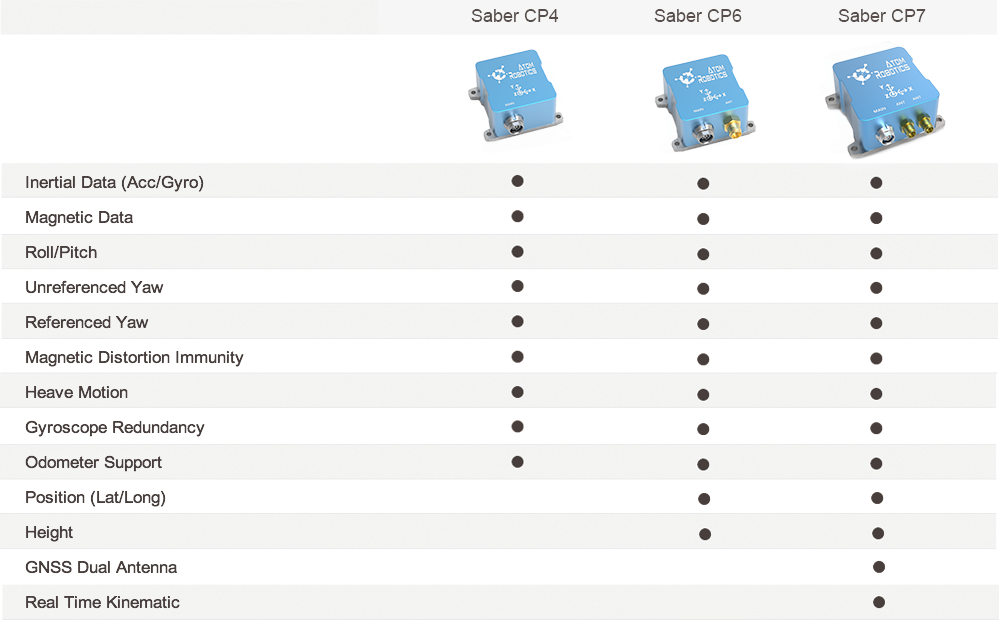

Capabilities

Specifications

Saber CP-series Dynamic Gyro Drift Roll/Pitch (Static | Dynamic) Position ECEF
Saber-CP4
<3°RMS/h
<0.1° | <0.3°
N/A
Saber-CP6 (GNSS)
<3°RMS/h
<0.1° | <0.3°
2.5m
Saber-CP7 (RTK)
<3°/h RMS
<0.1° | <0.3°
2cm(RTK)

Highlights of the Saber CP-series product line:

  • » RS232、RS485、USB、CAN support
  • » Industrial grade accuracy, with all sensors 100% calibrated
  • » Addressing variant robotics and unmanned system
    innovators etc, with IP67 industry waterproof
  • » Global 24/7 technical support

Development

Software SDK

Windows-based software allows:
» Real-time data visualization

» Simple configuration profiles

» Data analysis with time line

» Export data to various formats

» C library, code source examples are included

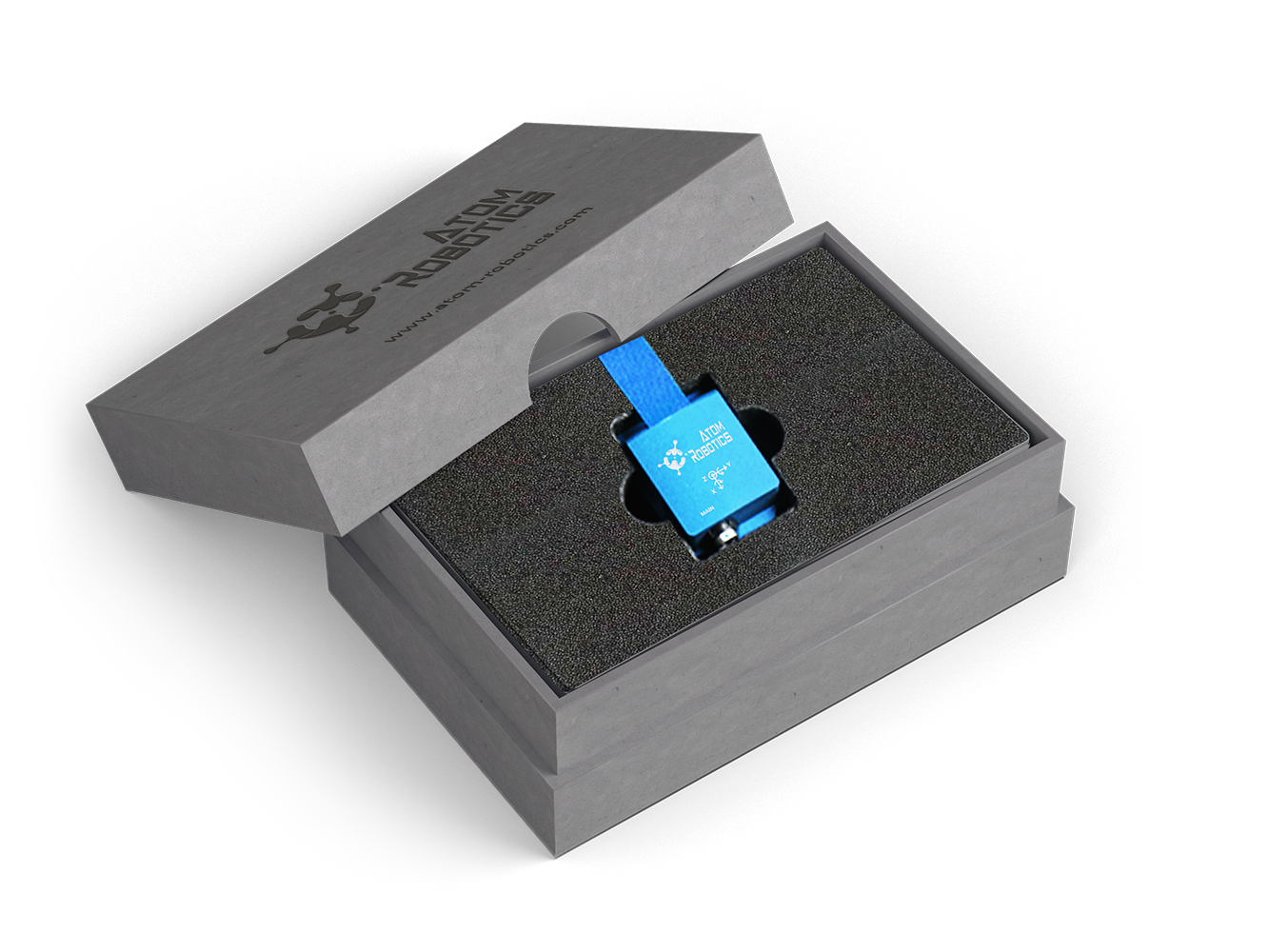

Saber CP-Series Development Kit

The Saber CP-series Development Kit and extensive SaberXplore Software Suite offer software and hardware for instant characterization and prototyping. For first-time users, it’s a great solution to start the development process.

The Development Kit contains:

Saber CP4 or Saber CP6

USB Cable

SaberXplore and SDK Software Suite
